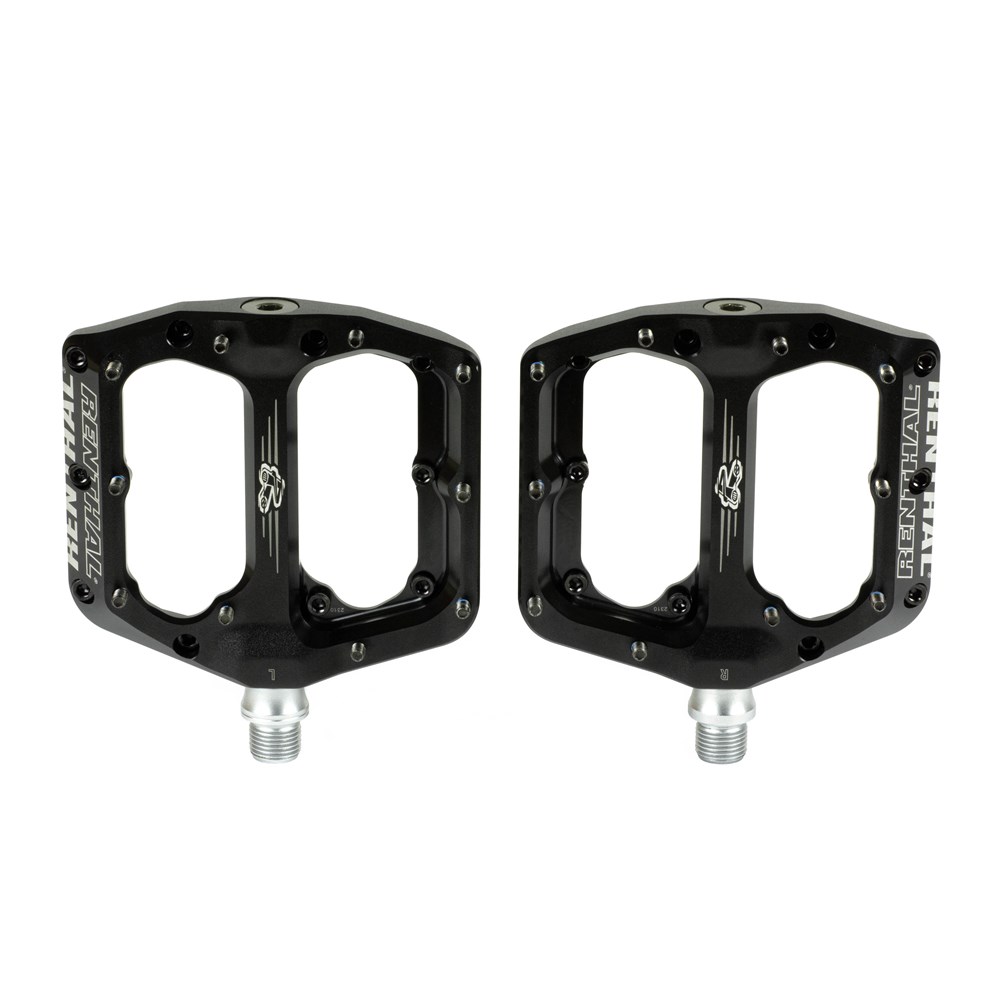

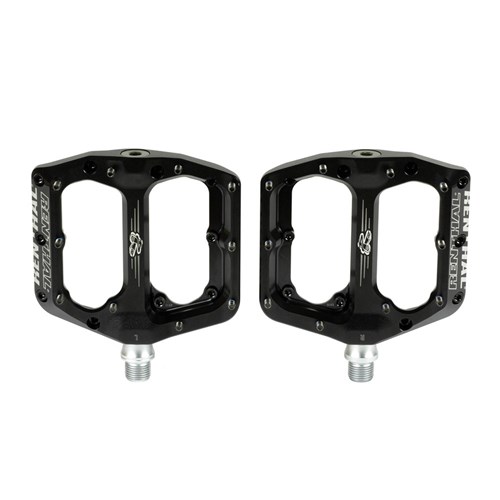

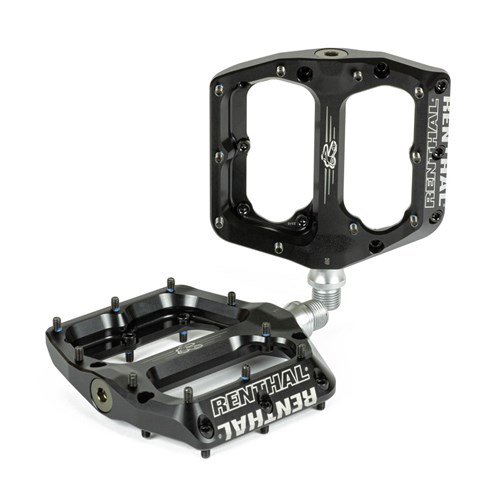

Revo-F Flat Pedals
With Ride-Tuned external features and patent pending internals, the Revo-F is the new flat pedal of choice. Featuring a two-axis concave pedal body, fully useable pedal platform and a pin system for fine tuning grip levels, the Revo-F offers unrivalled on-trail performance.
The Revo-F spins on an extra wide Igus bush and three cartridge bearings, with the internals fully sealed from the elements. Patent pending internals allow easy home maintenance, using standard tools.
Features
- Concave platform. L-100mm x W-104mm
- Ten pins per side
- Adjustable pin length. 2.5mm to 5.5mm in 1mm increments
- Three outboard cartridge bearings
- Extra wide inboard IGUS bush
- Fully sealed - Inboard full contact lip-seal. Outer O-ring seal
- Home serviceable, with Renthal patent pending axle system
- Forged and CNC machined 6061 aluminium pedal body
- High grade chromoly axle
- 488g
- Black or Gold anodised finish
